4.17 How to solve wave equation using leapfrog method?

Solve \(u_{tt}=c^2 u_{xx}\) for \( 0\geq x \leq 1\) with initial data defined as \(f(x)=\sin \left (2 \pi \frac {x - 0.2}{0.4}\right )\) over \(0.2 \geq x \leq 0.6\) and fixed at both ends.

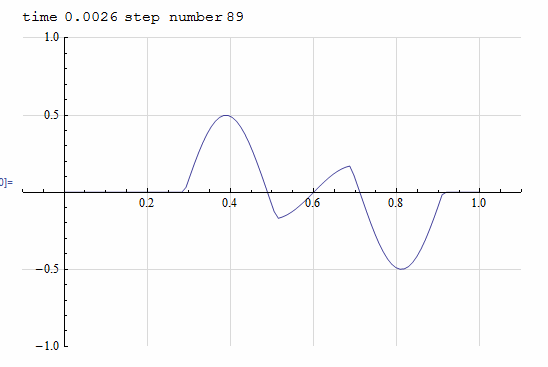

Mathematica

SetDirectory[NotebookDirectory[]];
Dynamic[p]


nPoints=100;
speed=351;
f1[x_]:= Piecewise[{{Sin[2 Pi (x-0.2)/0.4],0.2<=x<=0.6},{0,True}}];
coord = Table[j h,{j,0,nPoints-1}];
ic    = f1[#]&/@ coord;
h     = 1/(nPoints-1);
delT  = h/speed;
nSteps=1000;
end   = -1;
uNow  = ic;
uLast = uNow;
uNext = uNow;

Do[
  Which[
    n==1,
       uNext[[2;;end-1]]=(1/2)(uNow[[1;;end-2]]+uNow[[3;;end]]);
       uLast=uNow;
       uNow=uNext,

     n>2,
        uNext[[2;;(end-1)]]=uNow[[1;;(end-2)]]+uNow[[3;;end]]-uLast[[2;;(end-1)]];
        uLast=uNow;
        uNow=uNext
    ];
    (*Pause[.02];*)
    p=Grid[{
           {Row[{"time",Spacer[5],N[n*delT],Spacer[5],"step number",Spacer[2],n}]},
           {ListLinePlot[Transpose[{coord,uNow}],PlotRange->{{-.1,1.1},{-1,1}},
           ImageSize->400,GridLines->Automatic,GridLinesStyle->LightGray],SpanFromLeft}
      },Alignment->Center
  ],
   {n,1,nSteps}];

Export["images/mma_100.pdf",p]

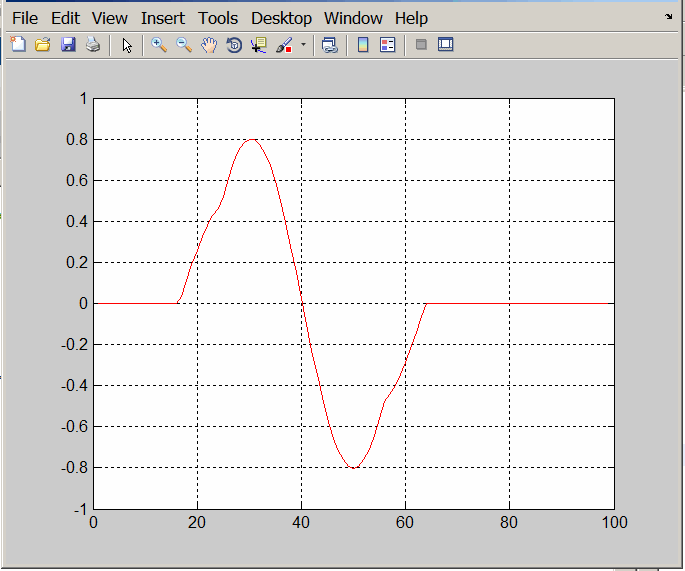

Matlab

%Nasser M. Abbasi July 8, 2014
%solve u_tt = wave_speed * u_xx using leap frog
%  0<x<1
%  initial data is f(x)
%  initial speed = 0;
% fixed at x=0 and x=1

close all;
nPoints = 100;
speed   = 351;
f       = @(x) sin(2*pi*(x-0.2)/0.4).*(x>0.2&x<=0.6)
coord   = linspace(0,1,nPoints);
ic      = f(coord);
h       = 1/(nPoints-1);
delT    = h/speed;
last    = ic;
now     = last;
next    = now;
nSteps  = 500;

for n=1:nSteps
    if n==1
       next(2:end-1) = 1/2*(now(1:end-2)+now(3:end));
       last = now;
       now  = next;
    else
       next(2:end-1) = now(1:end-2)+now(3:end)-last(2:end-1);
       last = now;
       now  = next;
    end
    plot(now,'r');
    xlim([0 nPoints]);
    ylim([-1 1]);
    grid;
    pause(.1);
    drawnow;
end

print(gcf, '-dpdf', '-r600', 'images/matlab_100');

Ada

with Ada.Text_IO;                       use Ada.Text_IO;
with Ada.Float_Text_IO;                 use Ada.Float_Text_IO;
with Ada.Integer_Text_IO;               use Ada.Integer_Text_IO;
with Ada.Numerics;                      use Ada.Numerics;
with Ada.Numerics.Elementary_Functions; use Ada.Numerics.Elementary_Functions;

procedure foo is
   nPoints : constant Integer := 100;
   type grid_type is array (1 .. nPoints) of Float;
   Output : File_Type;
   nSteps : constant Integer := 500;
   speed  : constant Float   := 351.0;
   coord  : array (1 .. nPoints) of Float;
   h      : constant Float   := 1.0 / (Float (nPoints) - 1.0);
   delT   : constant Float   := h / speed;
   last   : grid_type        := (others => 0.0);
   now    : grid_type        := last;
   next   : grid_type        := last;

   -- output one snapshot to file to plot later
   procedure put_rec (rec : in grid_type) is
   begin
      for i in rec'Range loop
         Put (Output, rec (i));
         Put (Output,' ');
      end loop;
   end put_rec;

   -- define function of initial data
   function f (x : Float) return Float is
   begin
      if (x > 0.2 and x <= 0.6) then
         return Sin (2.0 * Pi * (x - 0.2) / 0.4);
      else
         return 0.0;
      end if;
   end f;

begin
   Create (File => Output, Mode => Out_File, Name => "output2.txt");

   for i in 1 .. nPoints loop
      coord (i) := Float (i - 1) * h;
      last (i)  := f (coord (i));
   end loop;

   now  := last;
   next := now;
   put_rec (now);
   New_Line (File => Output);

   for i in 1 .. nSteps loop
      if i = 1 then
         for j in 2 .. nPoints - 1 loop
            next (j) := (1.0 / 2.0) * (now (j - 1) + now (j + 1));
         end loop;
         last := now;
         now  := next;
         put_rec (now);
         New_Line (File => Output);
      else
         for j in 2 .. nPoints - 1 loop
            next (j) := now (j - 1) + now (j + 1) - last (j);
         end loop;
         last := now;
         now  := next;
         put_rec (now);
         if i < nSteps then
            New_Line (File => Output);
         end if;
      end if;

   end loop;

   Close (Output);
end foo;

The GPR file to build the above is

project One is

   for Main use ("foo.adb");
   for Source_Files use ("foo.adb");

   package Builder is
      for Executable_Suffix use ".exe";
   end Builder;

   package Compiler is
      for Default_Switches ("ada") use ("-g", "-gnata", "-gnato", "-fstack-check",
                                                "-gnatE", "-fcallgraph-info=su,da");
   end Compiler;

end One;


The animation for Ada was done by reading the output and using the plot command in Matlab to show the result.

close all;
A= dlmread('output2.txt');
[nRow,nCol]=size(A);
for i=1:2:nRow
    plot(A(i,:))
    ylim([-1 1]);
    grid;
    pause(.1);
    drawnow;
end
